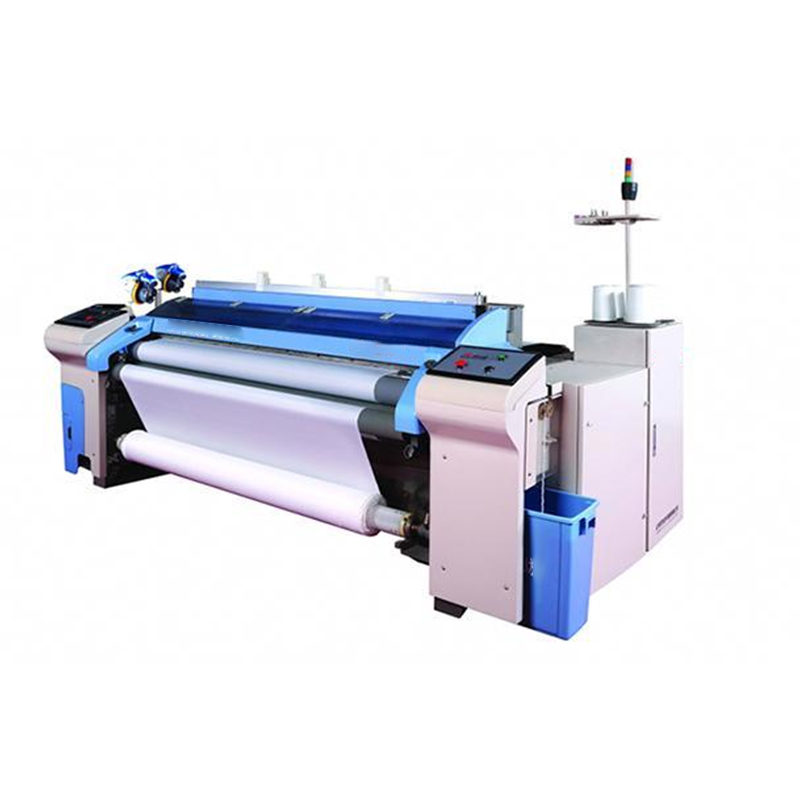

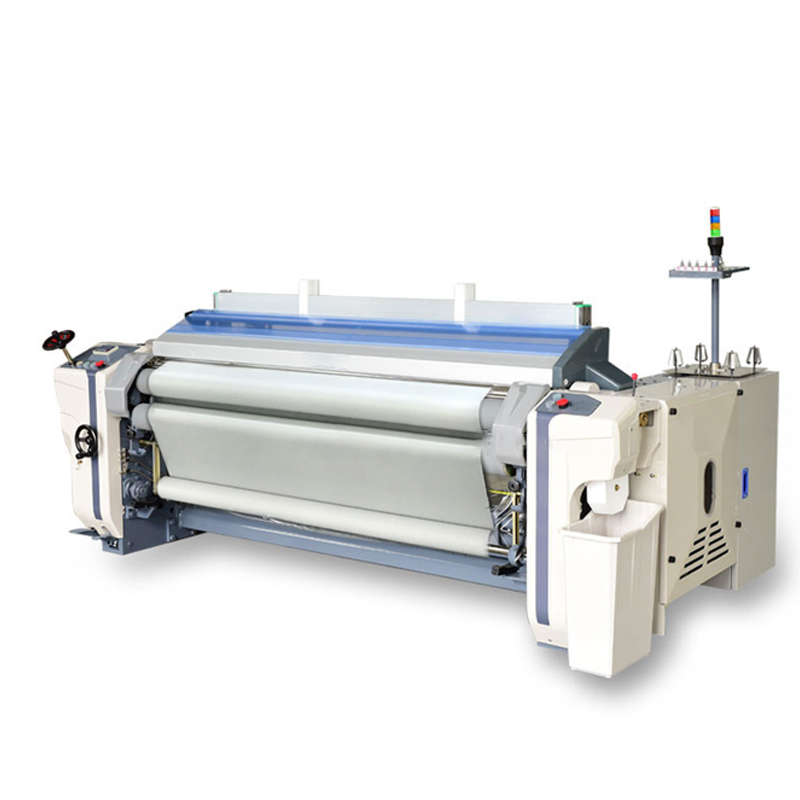

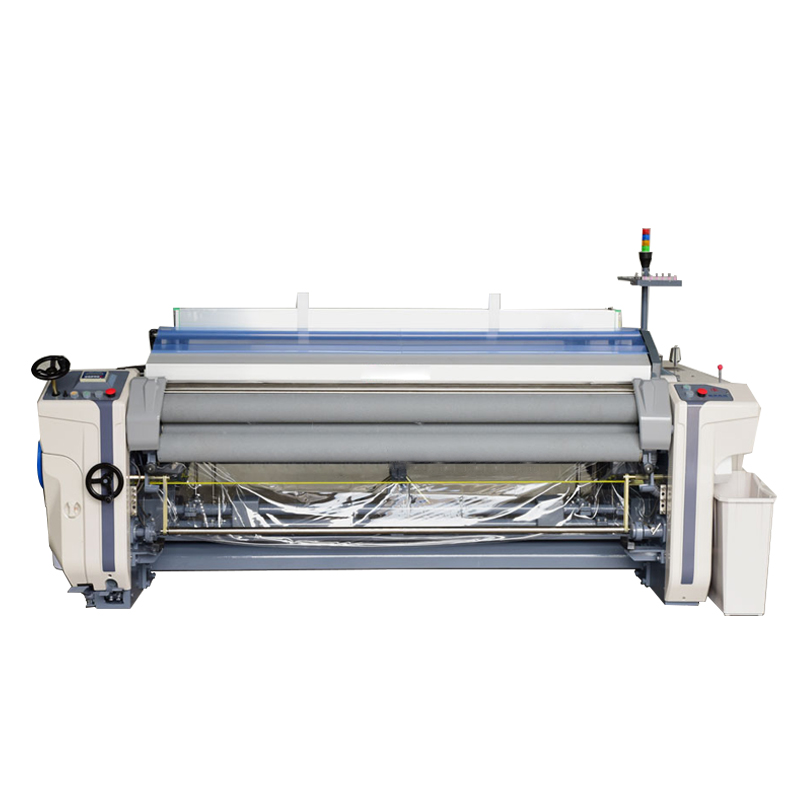

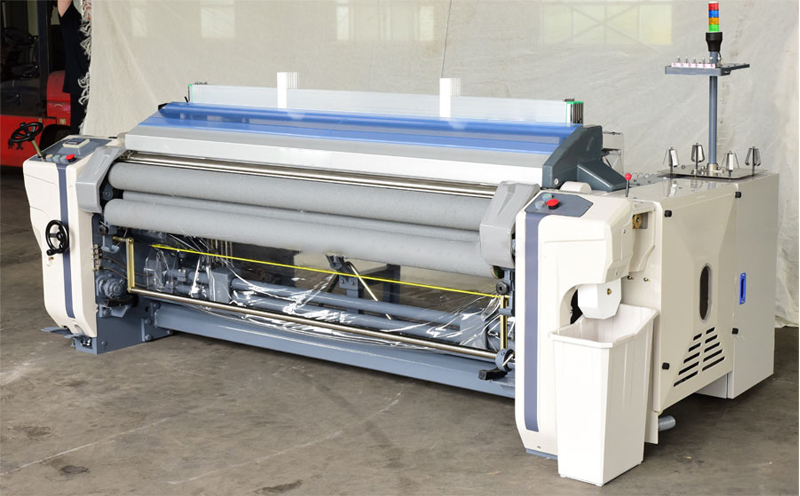

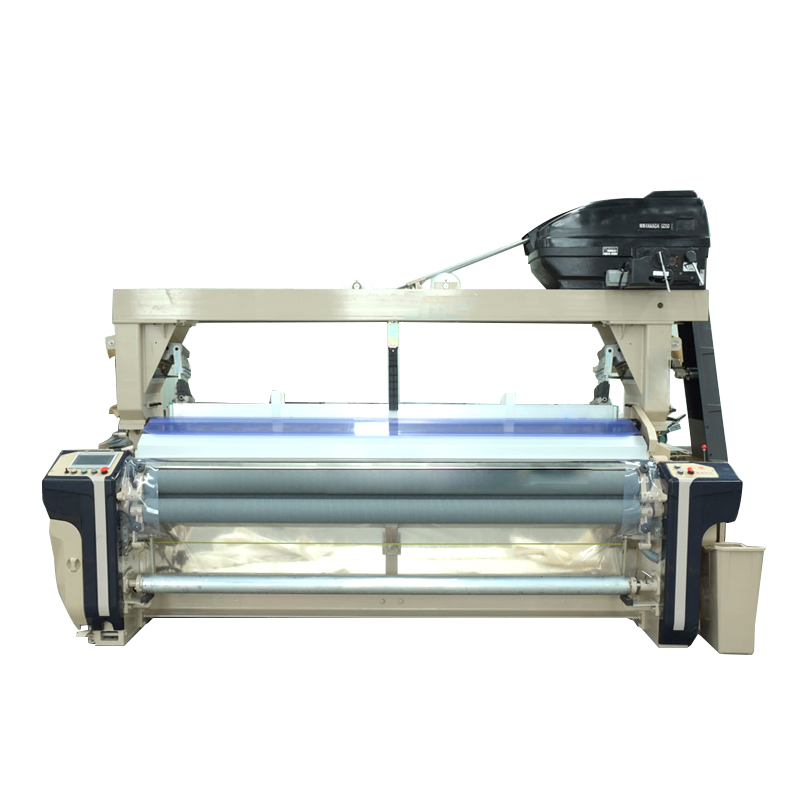

Shuttleless With High-pressure Current Water Jet Loom Weaving Machine
The JW8200 high-speed water jet loom features a higher production efficiency than the JW400 and JW822 water jet looms, with a shift weft density and weaving speed.
- Yongxusheng
- China-jiangsu
- To be negotiated
- 10000
Details
Model: JW8200
Product Highlights
| Application | Denier water resistant chemical fabric，fabric up to 600g/m2 |
| Breadth(cm) | 190, 210, 230, 280, 340, 360, 380 |
| Designed speed | 600~1300RPM |
| Weaving Range | Filament: 20 D- 1350 D |
| Weft selection | 1 color, 2 colors, 3 colors or 4 colors |
| Loom beam disc diameter (mm) | 800 |
| Roller Diameter (mm) | 550 |
| Shedding | Plain shedding , Positive cam shedding, Dobby shedding |
| Beating up | Double connection rod assembly four-bar beating-up |
| Selvedge | Raw edge, mechanical tuck-in selvedge |
| Let-off device | Electronic let-off |
| Take-up | Electronic take-up |
Feature:The water jet loom is designed with an electronic let-off mechanism, double back rest and eccentric beating shaft to maintain tension on weft and warp yarns, making the water jet loom appropriate for weaving of high-density heavy fabrics.
Shipping Port:Ningbo or Shanghai
