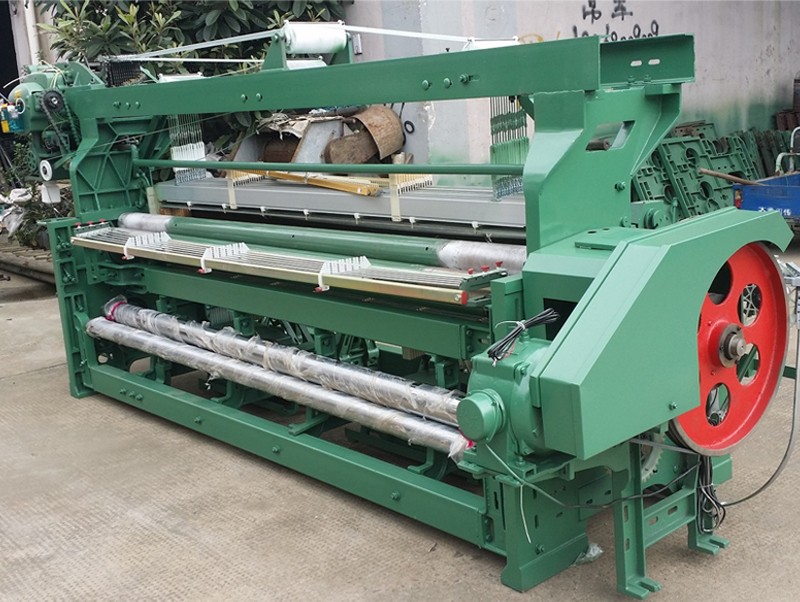

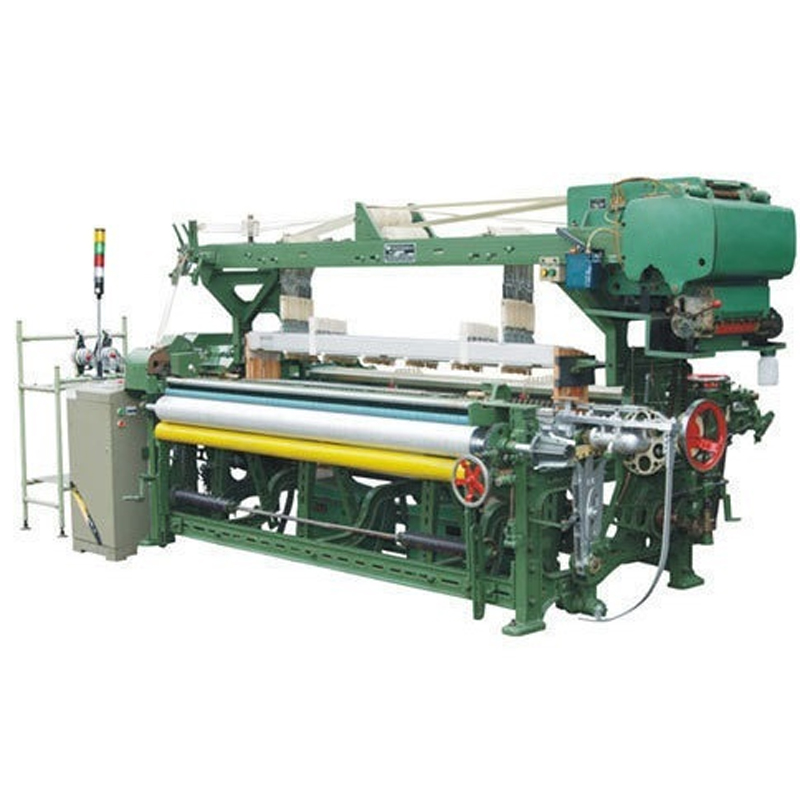

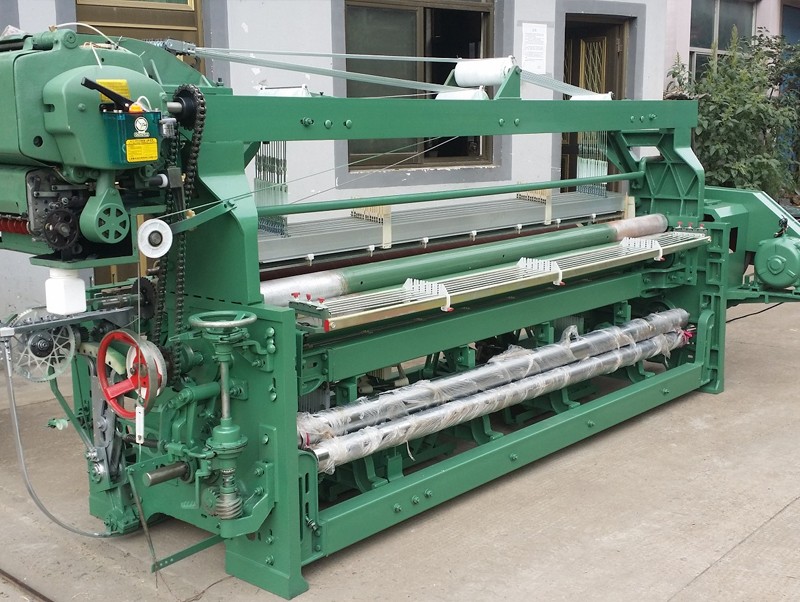

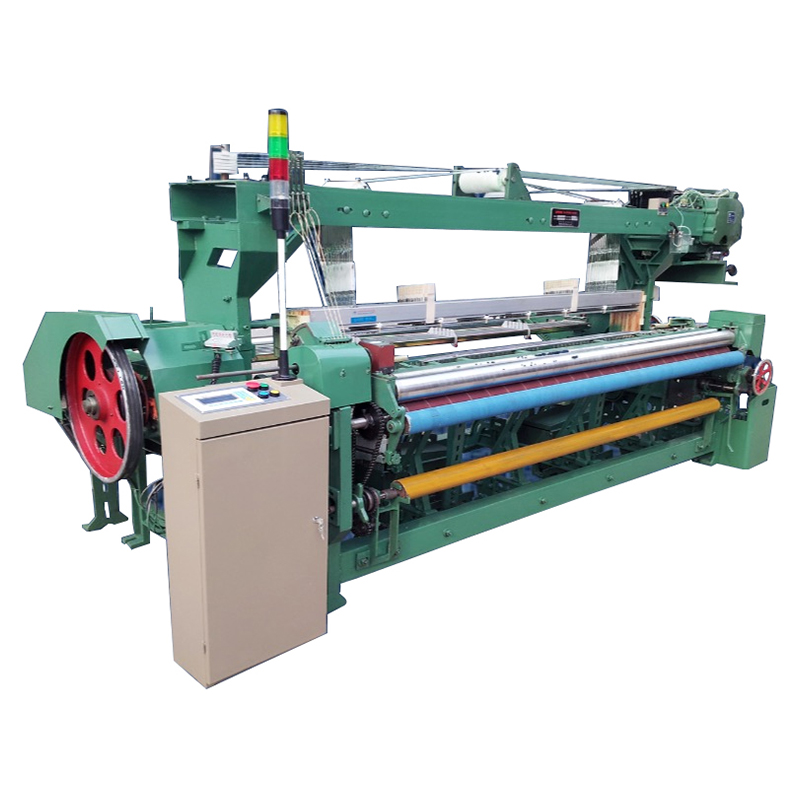

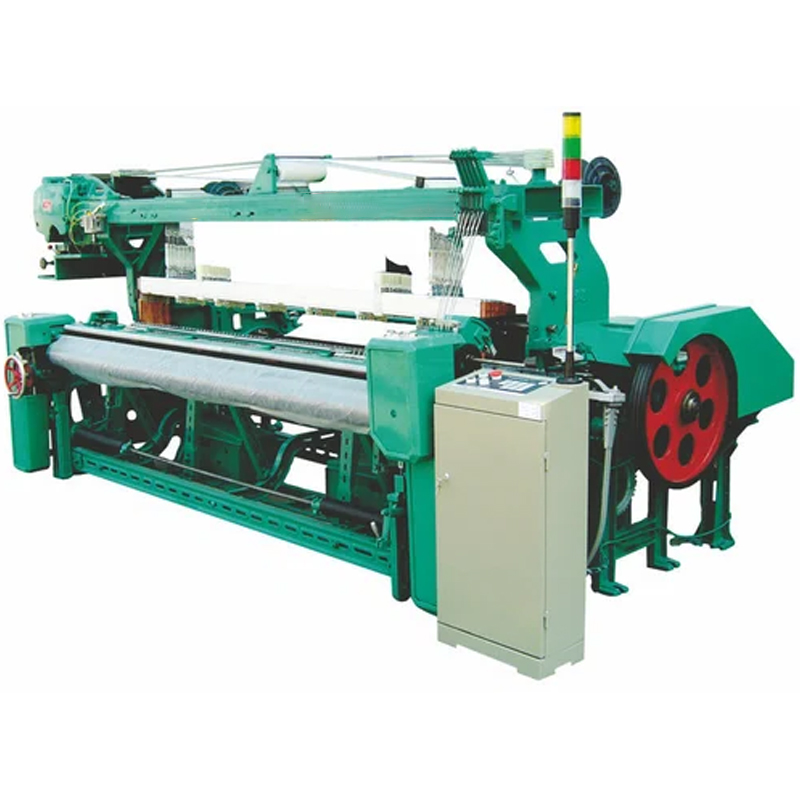

High Speed Mesh Flexible Rapier Loom Machine
The RFRL30 high speed rapier loom is primarily designed and used for weaving natural, synthetic, rayon, and blended yarns into various complex cloth, upholstery fabric, fiberglass fabrics, filter fabrics, and industrial fabrics for safety applications.
- Yongxusheng
- China-jiangsu
- To be negotiated
- 10000
Details
Model: RFRL30
Product Highlights
| Reed Width (cm) | Nominal reed with width | 170, 190, 200, 220, 230, 240, 260, 290, 320, 340, 360. |
| Effective reed width | 0cm~80cmsubtracted from the nominal reed with value | |
| Weaving Capacity | Cotton and man-made fiber yarn | 500tex(1.2Ne) ~ 5tex(120Ne) |
| Slub yarn or worsted wool | 680tex(1.5Nm) ~10tex(100Nm) | |
| Filament | 10dtex (9Td) ~ 1650dtex (1500Td) Fabric weight: 20~850g/m2 | |
| Weaving Speed | Rotational speed | 700r/min |
| Crafting speed | 450~650r/min | |
| Maximum weft insertion rate | 1500m/min | |
| Weft selector | 4~8colors (allowable colors of weft pick to be woven) Selector type: linear-motion motor or step motor type electronic weft selector | |
| Weft | Weft accumulator | fixed drum type weft accumulator or electronic weft accumulator |
| Weft cutter | mechanical type | |
| Power | Drive control | 7.5kw three-phase asynchronous motor, electromagnetic clutch, starter motor |
| Main motor | 7.5kw AC three-phase asynchronous motor | |
| Shedding | High speed dobby shedding system (Its maximum allowable number of heald frames is 20.) or active type cam shedding system(Its maximum allowable number of heald frames is 8.) | |
| Jacquard shedding system | ||
| Weft Beating | Sley (driven by two conjugate cams on both sides of the loom) | |
| Weft Insertion Device | Mechanical linkage of crankshaft and connection rod(without hooks) | |
| Warp Let-off Mechanism | AC servo motor for continuous warp let-off motion | |
| Single warp beam | ||
| Warp flange diameter | φ1000mmφ800mmφ700/φ500mm | |
| Cloth Take-up | Electric servo motor for continuous cloth take-up | |
| Cloth roll diameter | 600mm(standard) or1200mm(with the aid of external device) | |
| Weft density | 2~200picks/cm | |
| Selvedge Formation | Selvedge forming device | stepper motor or linear motor |
| Selvedge cutter | mechanical type or electronic type(for option) | |
| Temple | two independent temples set on both sides of the loom or one temple spanning the full width of the warp | |
| Lubrication | Oil spray lubrication or oil bath lubrication | |
| Stop Protector | Warp stop-motion with 6 or 8 rows of contact points | |
| Weft stop-motion: highly-sensitive piezoelectric sensor | ||
| Other stop-motion mechanisms available to stop the loom automatically if the selvedge breaks. | ||
| Stop-indicator | The reason for the loom to stop is presented on the control panel. The 4-color light will be turned on to warn users. | |
| Automatic Functioning | Automatic loom stop at the designated point, slow-speed weft-finding, cloth-fell compensation (broken weft repair), warp tension adjustment, reset, automatic warp tension detection, loom fault display. | |
| Electrical Control | Multi-function CPU control system for monitoring, automatic diagnosis, and information display. | |
| Touch screen or large liquid crystal display(LCD) for two-way communication, setting or adjusting parameters, programming | ||
Color:Green
