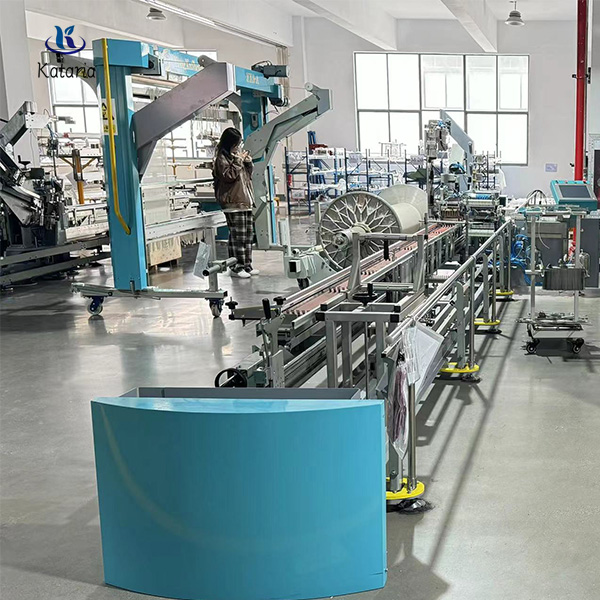

An automatic drawing-in machine is a sophisticated piece of equipment designed to streamline the process of threading yarn through the heddles and reed of a loom. This technology significantly enhances efficiency in textile production, reducing manual labor and minimizing errors. If you’re looking to understand how to operate an automatic drawing-in machine, here’s a step-by-step guide.

Step 1: Familiarize Yourself with the Machine

Before you begin, take the time to read the user manual that comes with your automatic drawing-in machine. Understanding the components, such as the threading mechanism, control panel, and safety features, is crucial for effective operation.

Step 2: Prepare the Yarn

Select the appropriate yarn for your project. Ensure that it is clean and free from tangles. The yarn should be properly wound onto the creel, which is the part of the machine that holds the spools. Make sure the tension is set correctly to avoid any issues during the drawing-in process.

Step 3: Set Up the Machine

Position the automatic drawing-in machine in a well-lit area with enough space for operation. Connect it to a power source and ensure all safety guards are in place. Adjust the machine settings according to the specifications of the yarn and the loom you will be using.

Step 4: Thread the Yarn

Follow the machine’s threading diagram to guide the yarn through the necessary components. This usually involves threading through the tensioning devices, guides, and finally into the heddles. The automatic drawing-in machine will typically have a mechanism that pulls the yarn through the heddles automatically.

Step 5: Start the Machine

Once everything is set up, initiate the machine using the control panel. Monitor the process closely to ensure that the yarn is being drawn in correctly. If any issues arise, stop the machine immediately and troubleshoot.

Conclusion

Using an automatic drawing-in machine can greatly enhance your weaving efficiency. By following these steps, you can ensure a smooth operation, allowing you to focus on creating beautiful textiles with ease.
